Aero Pro Hardware Schematic

Table of Contents

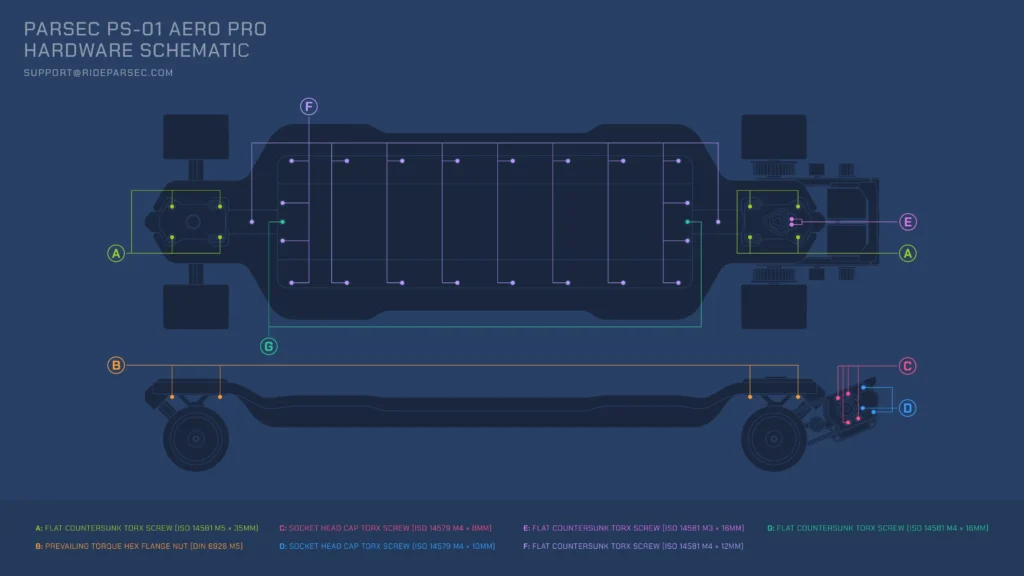

PS-01 Aero Pro Hardware SchematicDownload

Truck Baseplates

Hardware
  • A: Flat Countersunk Torx Screw (ISO 14581 M5 x 35mm)
  • B: Prevailing Torque Hex Flange Nut (DIN 6926 M5)
Tools Needed
  • 8mm wrench
  • T25 Torx key

Motors and Picktail

Hardware
  • C: Socket Head Cap Torx Screw (ISO 14579 M4 x 8mm)
  • D: Socket Head Cap Torx Screw (ISO 14579 M4 x 10mm)
Tools Needed
  • T20 Torx key
  • Loctite 243 or equivalent

Charge Port Cover

Hardware
  • E: Flat Countersunk Torx Screw (ISO 14581 M3 × 16mm)
Tools Needed
  • T10 Torx key

Monocoque Covers

Hardware
  • F: Flat Countersunk Torx Screw (ISO 14581 M4 × 12mm)
  • G: Flat Countersunk Torx Screw (ISO 14581 M4 × 16mm)
Tools Needed
  • T20 Torx key

Motor Mount to Hanger Assembly

(Not in diagram.)

Visual differences between integrated and separate flanges on Aero Pro's rear truck hanger.
Hardware for Integrated Flanges
  • Socket Head Cap Torx Screw (ISO 14579 M5 × 16mm)
  • Prevailing Torque Hex Flange Nut (DIN 6926 M5)
Tools Needed for Integrated Flanges
  • 8mm wrench
  • T25 Torx key
Hardware for Separate Flanges
  • Socket Head Cap Torx Screw (ISO 14579 M5 × 12mm)
Tools Needed for Separate Flanges
  • T25 Torx key
  • Loctite 243 or equivalent
